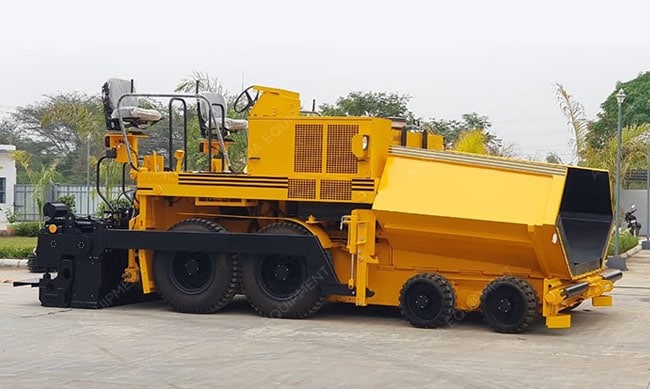

Asphalt Paver

MODELAEP 4.5 HES ( HOT MIX )AEP 4.5 HES (WET MIX )
Material SuitabilityBituminous MaterialBituminous, Wet Mix
Operating Height3010 mm3010 mm
Shipping Height2200 mm2200 mm
Length5600 mm5600 mm
operating width3050 mm3050 mm
Shipping width2750 mm2750 mm
Weight ( Approx. )9.5 tons10 ton
Truck Dumping Clearance600 mm600 mm
Wheel Base2500 mm2500 mm
Engine BaseKirloskar BS III Model 4R1040TC or EquivalentLeyland BS III model ALHT4CTIC3 Kirloskar BS III Model R1040TA3 or Equivalent
Engine Output76 HP @ 2200 rpm105 HP @ 2200 rpm
Battery12 Volts ( Heavy Duty )12 Volts ( Heavy Duty )
Tyres : Front 2 nos.- Solid Rubber558 * 405 * 305 mm558 * 405 * 305 mm
Tyres : Rear 2 nos.- Pneumatic12*20-18 ply12*20-18 ply
Paving Thickness10-200 mm10-200 mm
Paving Speed1.25-23 meters1.25-23 meters
Paving Width2.5 – 4.5 meters ( Hydraulically Extendable Screed )2.5 – 4.5 meters ( Hydraulically Extendable Screed )
Travel Speed0-16 KMPH0-16 KMPH
SteeringPower SteeringPower Steering
Hopper Capacity ( Approx. )4 Cubic Meters4 Cubic Meters
Fuel Tank Capacity120 Litres120 Litres
Hydraulic Oil Tank Capacity60 Litres60 Litres
Screed Heating2 Nos. Oil Burner or LPG2 Nos. Oil Burner or LPG
Auger Diameter300 mm300 mm
Screed Vibration0-30 Hz0-30 Hz
Crown-TO1+3-TO1+3
Standard AccessoriesTool BoxTool Box

Brief Description

Sr No Model Engine Paving Width Screed
1 AEP – 45 HES Dual Applicable Kirloskar Model – 4R1040 Turbo – 105 HP Ashok Leyland Model – AL400C2 2.5 to 4.5 M Hydraulically Extendable Vibratory Screed
2 AEP 45HES Hot Mix Kirloskar Model – 4R104076 HP 2.5 to 4.5 M Hydraulically Extendable Vibratory Screed

With over 25 years of experience, we are not just another Paver Exporter. Leading Manufacturer of Asphalt Paver. Our offered Asphalt paver is highly utilized in road construction machines. The paver is manufactured with standardized parts and components for high performance. Our offered Asphalt paver is highly utilized in road construction machines. The paver is manufactured with standardized part and component for high performance. The offered Asphalt Paver is manufactured in accordance with market standard using optimum quality materials and modern technology.

We offers a broad range of asphalt paver, its equipment competes in the rubber tire, steel track, and rubber belted market. The Machine is supplied with a quick change mould mechanism. Paver finisher is provided with a kerosene tank for the heating screed. From our high way class paver to our mid-sized asphalt equipment each model is equipped with high performance features to reduce maintenance, lower operating costs and cost productivity.

Our offered asphalt paver in size from those small machines all the way up to  largest model and its size 12 meter width helping it thrive on high production sites such as airports and roadways. The speed can be adjusted and vibrators are quickly verified because the format concrete is right beside the operators. Utilized in a various application we can available this Asphalt paver in the different model according to the needs of our regular client. Moreover, we offer this at a very nominal rate.

Standard Components of Asphalt Paver

Salient Features of Asphalt Paver
